eX700 Series

Revolutionary IIoT Controller

Exor has updated its flagship product the eX700 Series and gone much further, creating the ultimate all-in-one solution ready for scalable applications across many industries. Super High Performance, High Resolution Glass Cap Touch, Fully Connectable upstream & downstream, Powerful Integrated PLC w/ all the major protocols, Integrated VPN with Service Cloud, with up to a 5 year warranty.

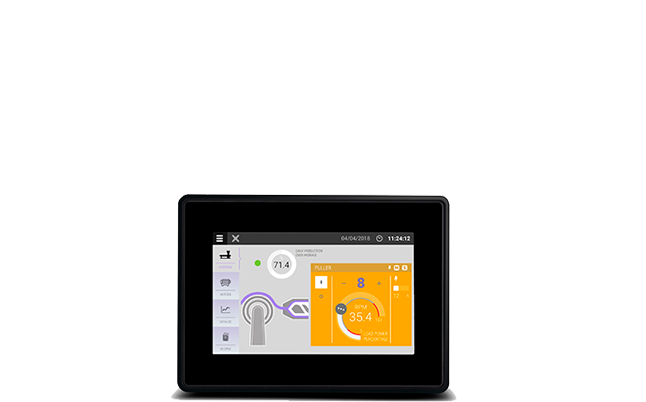

eX705

5" TFT, 800x480, PCAP
1GHz ARM Cortex-A8 Single Core,
512MB RAM, 4GB Flash, 2x Ethernet

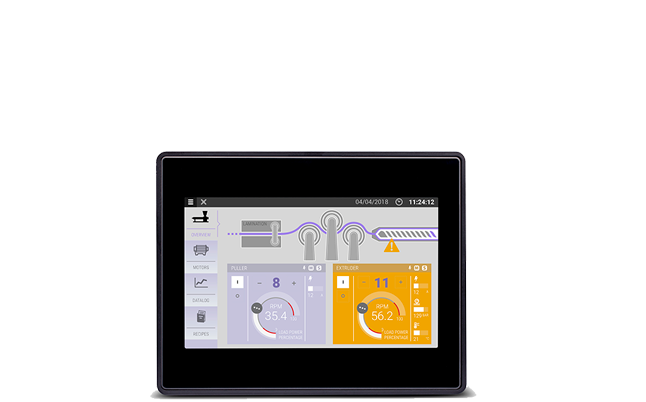

eX707

7” TFT, 800x480, PCAP
800MHz ARM Cortex-A9 Dual Core
1GB RAM, 4GB Flash, 3x Ethernet

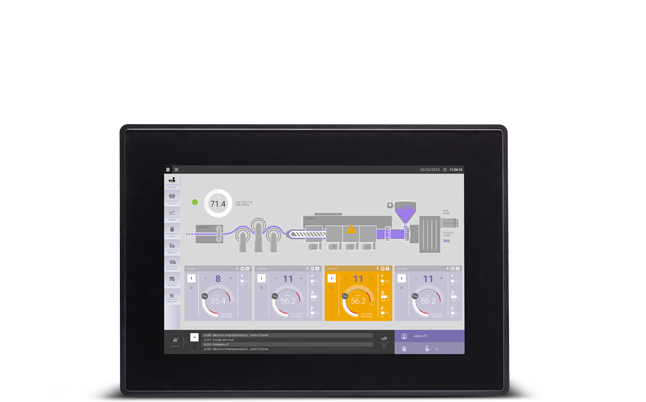

ex710

10,1" TFT, 1280x800, PCAP
800MHz ARM Cortex-A9 Dual Core
1GB RAM, 4GB Flash, 3x Ethernet

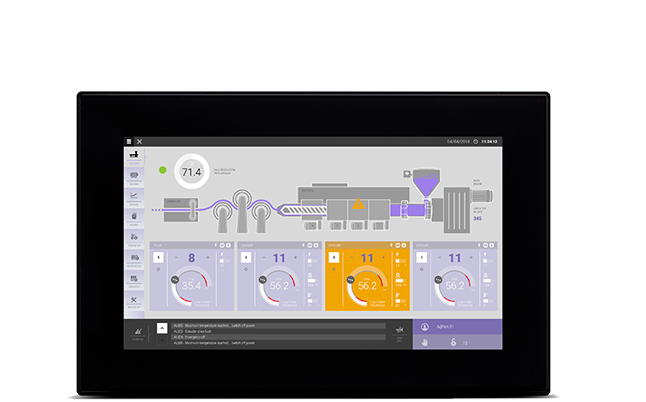

eX715

15,6" TFT, 1366x768, PCAP
800MHz ARM Cortex-A9 Quad Core
2GB RAM, 8GB Flash, 3x Ethernet

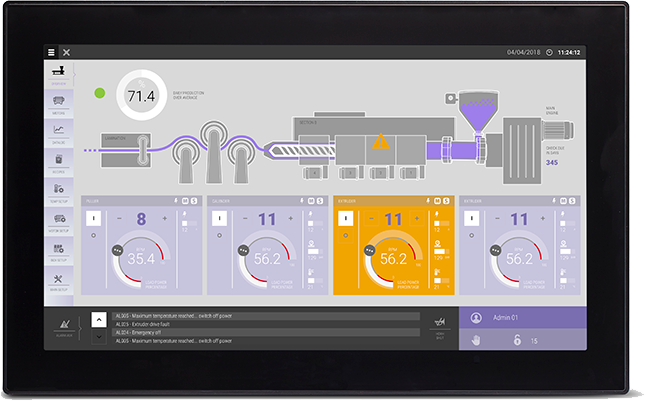

eX721

21,5" TFT, 1920x1080, PCAP
800MHz ARM Cortex-A9 Quad Core
2GB RAM, 8 GB Flash, 3x Ethernet

Key Features

  • Created Within the X Platform
  • Industry 4.0 Product Concept
  • HW and FW Optimised for Extremely Fast Operation
  • System and Project Rapid Boot-Up
  • OS Linux RT
  • JMobile – the software that powers the X Platform
  • CODESYS V3 with Ethernet I/O Stacks
  • Multitouch and Gesturing
  • Up to 2.100.000 Pixels Display
  • Wide Angle Visibility
  • Beautiful 16,000,000 Colors
  • Resistant to Scratches, UV and Chemicals
  • Total Glass Design
  • Network Separation possibile via Up to 3 Ethernet
  • Networks with different IP addresses
  • Plug in Modules for System Expansion
  • IECEx, ATEX, DNV-GL, cULus, cULus Haz. Loc., RCM
