JSmart Series

When aesthetics and functionality meet, the market changes

We invite you on this journey of imagination and discovery by introducing the JSmart family of Smart HMI Field Devices.

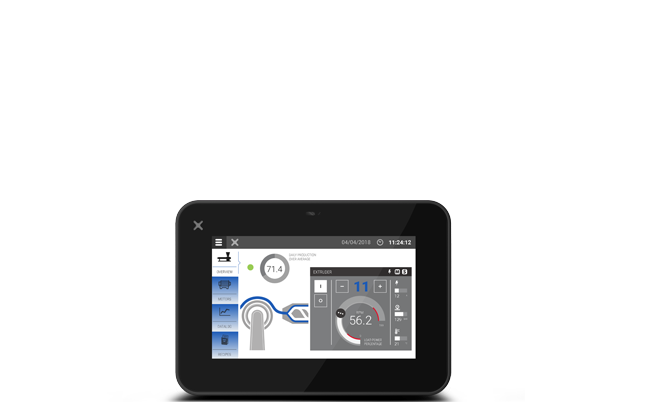

JSmart705

5" TFT, 800x480, PCAP
800MHz ARM Cortex-A9 Dual Core
1GB RAM, 4GB Flash
1 PoE Ethernet

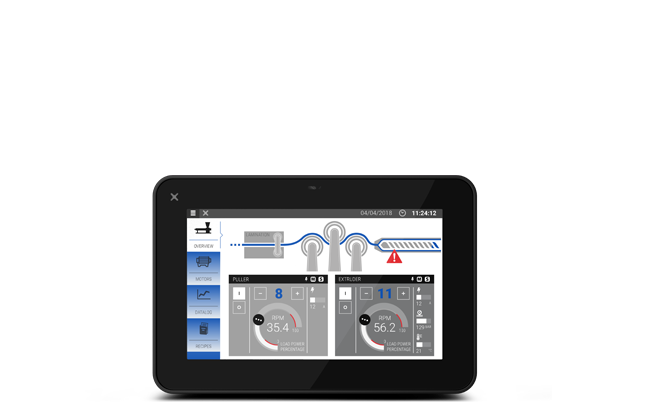

JSmart707

7" TFT, 1024x600, PCAP
800MHz ARM Cortex-A9 Dual Core
1GB RAM, 4GB Flash
1 PoE Ethernet + Wi-Fi

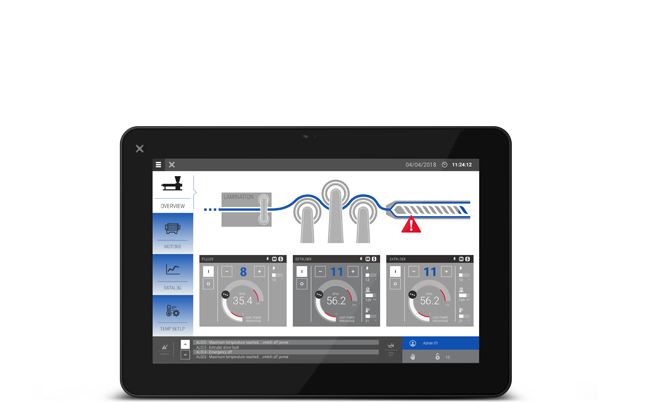

JSmart710

10.1" TFT, 1280x800, PCAP
800MHz ARM Cortex-A9 Dual Core
1GB RAM, 4GB Flash
1 PoE Ethernet + Wi-Fi

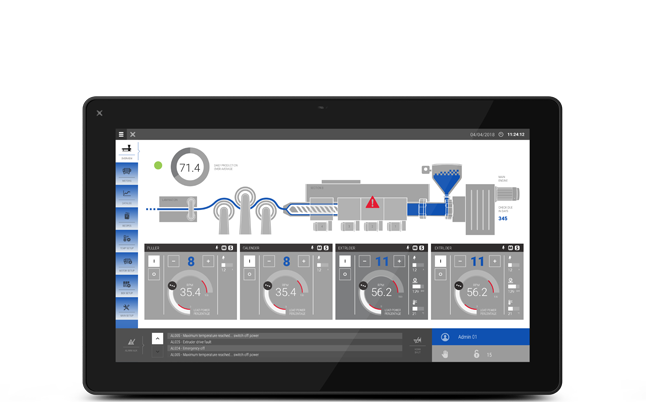

JSmart715

15.6" TFT, 1366x768, PCAP
800MHz ARM Cortex-A9 Quad Core
2GB RAM, 8GB Flash
1 PoE Ethernet + Wi-Fi

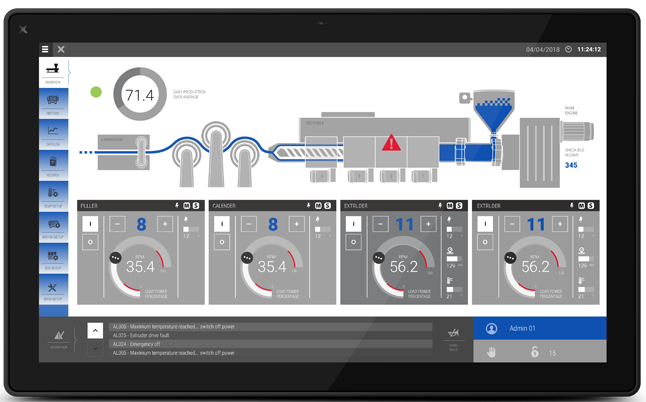

JSmart721

21.5" TFT, 1920x1080, PCAP
800MHz ARM Cortex-A9 Quad Core
2GB RAM, 8GB Flash
1 PoE Ethernet + Wi-Fi

Key Features

  • from 5.0” to 21.5” TFT color display,
  • up to a resolution 1920x1080 pixel with 16M colors, dimmable backlight
  • PCAP Touchscreen Multitouch with swiping and zooming
  • 10/100 Ethernet port PoE single cable for power and ethernet
  • Wi-Fi Connection • up to a ARM Cortex-A9 quad core CPU
  • Full IP67 protection; ideal for mounting-arm installation right at the machine
  • Mounts on 22 mm hole
  • Includes environment and motion sensors
  • Can be used with cable up to 100 m distance from source
